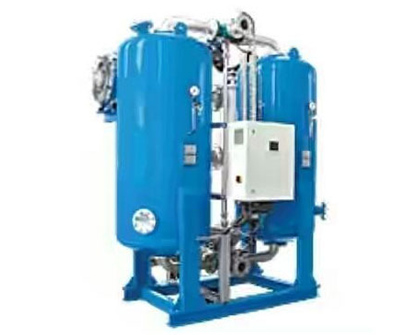

Desiccant Air Dryer

Relying on our expertise in this domain, we are into offering Desiccant Air Dryer.

Specification

• Type: Air Dryer
• Capacity: 23m3/min
• Color: Blue
• Size: Customized

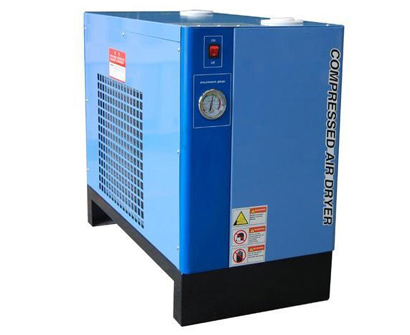

Compressed Air Dryer

We are one of the most reliable companies in this domain and are into offering Compressed Air Dryer.

Specification

• Type: Air Dryer
• Material: Stainless Steel & Plastic
• Color: Blue
• Size: 1720×1380mm

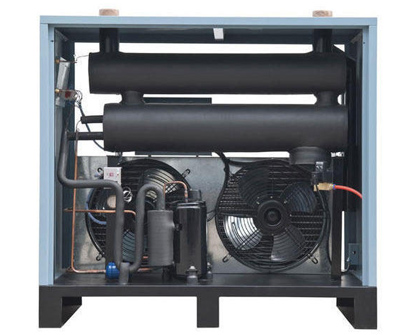

Refrigerated Air Dryer

Having the support of an expert team, we have successfully developed Refrigerated Air Dryers. These dryers worked on the principle of compressed air with saturated water vapor that enters the dryer's pre-cooling device. This air is cooled down with outgoing cold air, thus reducing the load of the system. This pre-cooled air enters the evaporator where heat gets released and is absorbed by the media reaching the pre-set temperature (2-4°C). After cooling the vapor gets converted into droplets and is separated by steam separator and flows out of the dryer with the assistance of automatic drainer. After that the cool air enters into pre-cooling device's shell side for exchanging heat. This leaves the dryer to get heated upto the temperature of 10°C lower than that of inlet air. The process of reheating is done for moisture condensation in the outside exit air pipeline. It in-turn elevates the energy of air and improve effectiveness. The next step is to filter out the solid dust of over 3µ in compressed air..
